Description

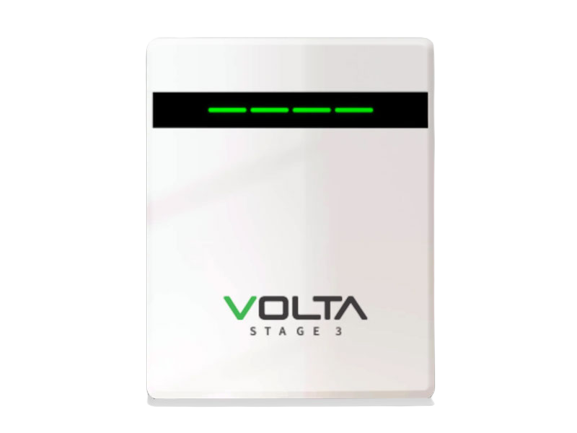

10Kwh 200Ah Stage 3

Compact size for space saving
-Reliable performance 1C Rated
-95% DoD with more usable capacity
-Modular design for expansion
-Up to 8 units can be stacked in parallel
-6000 cycles with 10+ year design life @ 80% DOD
-Safety Cert TUV, CE, UN38.3
Power cable set, Wall bracket set and Floor standing Feet included.
5 Year warranty

Charge Voltage: 56vdc
Max Discharge Current: 150A
Discharge Cut Off Voltage: 44.8vdc
Communication: RS485/RS232,CAN
Dimensions: 480x650x225mm
Weight: 85Kg
Installation Method: Wall Mounted OR Floor Standing
*Test Condition: 80% DOD, 0.2C charge & discharge @25℃
